Lipid Nanoparticle (LNP) Encapsulation

Microfluidic LNP formulation for siRNA, ASO, and mRNA. We tune FRR/TFR, composition, and buffer exchange to deliver high EE%, controlled particle size/PDI, and ISO-aligned QC.

Microfluidic Mixing High EE% DLS Size & PDI Sterility • Endotoxin RUO → GMP-like

LNP Encapsulation — Overview & Service at a Glance

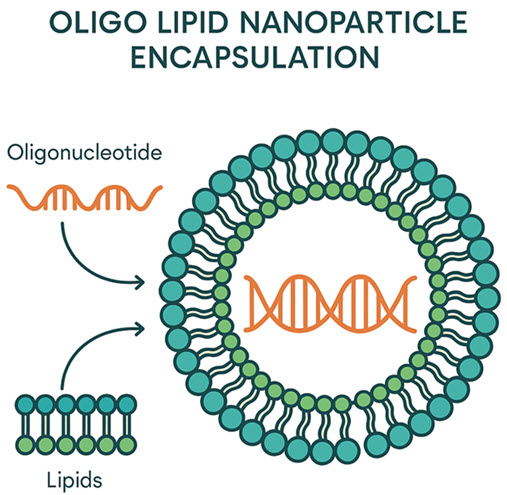

Bio-Synthesis, Inc. offers end-to-end lipid nanoparticle (LNP) encapsulation services for siRNA, antisense oligonucleotides (ASO, incl. LNA/cEt), and mRNA payloads. Using precision microfluidic mixing, our scientists optimize FRR/TFR and lipid composition (ionizable lipid, DSPC, cholesterol, PEG-lipid) to achieve reproducible particle size, narrow PDI, and high encapsulation efficiency (EE%).

Each project is executed within our ISO 9001 / 13485-aligned quality framework with full traceability and release testing. Typical QC includes DLS size/PDI, EE% (RiboGreen), zeta potential, pH/osmolality, endotoxin/bioburden, residual solvent, and appearance. Formulations can be exchanged into your preferred buffer via TFF or dialysis and scaled from feasibility to GMP-like production.

Modalities
siRNA • ASO • mRNA
Size Targets
60–120 nm; PDI ≤ 0.20
QC
DLS • EE% • Zeta • LAL
Supply
RUO → GMP-like

Also ask for lipid nanoparticle formulation, siRNA LNP, mRNA encapsulation, microfluidic LNP mixing, TFF buffer exchange, Bio-Synthesis LNP manufacturing.

Key Specifications
  • Modalities: siRNA • ASO • mRNA
  • Size Range: 60–120 nm (typical PDI ≤ 0.20)
  • Encapsulation Efficiency: ≥ 85% (program-dependent)
  • QC Panel: DLS, EE%, zeta, sterility/endotoxin, residual solvent
  • Supply Format: RUO → GMP-like with audit-ready documentation
Service Highlights
  • Microfluidic precision: reproducible FRR/TFR control for uniform LNPs
  • Comprehensive analytics: DLS, EE%, LC-MS (as applicable), stability tracking
  • Flexible formulation: custom lipid ratios, buffers, and nucleic-acid chemistries
  • Scalable manufacturing: feasibility → DoE → pilot → GMP-like lots
  • Full documentation: batch records, COA, QC reports, and chain-of-custody traceability

Process & Parameters

Process Flow
  1. Define payload, dose, target size/PDI, and release tests
  2. Formulate via precision microfluidic mixing (optimize FRR/TFR) into citrate buffer
  3. Purify/Exchange into final buffer (e.g., PBS) using TFF or dialysis
  4. Polish by 0.22 μm sterile filtration and fill-finish
  5. Test & Report EE%, DLS size/PDI, zeta, pH/osmolality, residual solvent, endotoxin/bioburden
Formulation Parameters
  • Flow Ratio: FRR (aqueous : organic) and TFR tuned for size/PDI
  • Composition: Ionizable lipid, DSPC, cholesterol, PEG-lipid
  • Nucleic Acid Ratio: N:P (or N:L) for high EE% with minimal free payload
  • Buffer: Citrate pH ≈ 4 → exchange to PBS or custom formulation
  • Storage: 2–8 °C (siRNA/ASO LNP) • −20 to −80 °C (mRNA LNP)

QC & Example Specs

Attribute Typical Spec Method
Particle Size 80 ± 20 nm DLS (Z-avg)
PDI ≤ 0.20 DLS
Encapsulation Efficiency ≥ 85% (program-dependent) Dye exclusion (e.g., RiboGreen)
Zeta Potential Report Electrophoretic light scattering
pH / Osmolality Report / target range pH meter / osmometer
Residual Solvent Meets limits GC
Endotoxin ≤ 0.5 EU/mL LAL
Bioburden / Sterility Meets acceptance USP tests
Appearance No visible particulates Visual

Specifications are examples; final release criteria set per modality, dose, and regulatory context.

Ordering Checklist (LNP)

  • ✅ Modality & dose — siRNA, ASO, or mRNA; target dose/volume.
  • ✅ Target size/PDI — e.g., 80 nm, PDI ≤ 0.20.
  • ✅ EE% goal — e.g., ≥ 85% with minimal free payload.
  • ✅ Buffer system — formulation buffer and final buffer requirements.
  • ✅ QC & release — DLS, EE%, zeta, sterility/endotoxin, residual solvent.
Speak to a Scientist

FAQ

Which payloads do you support?

siRNA, ASO (incl. LNA/cEt), and mRNA/saRNA. CRISPR (gRNA/mRNA) by program.

How do you control size and PDI?

We optimize FRR/TFR, composition, and buffer conditions during microfluidic mixing, then exchange/polish to the final buffer via TFF/dialysis.

What QC data are provided?

DLS size/PDI, EE% (dye exclusion), zeta, pH/osmolality, endotoxin/bioburden, residual solvent, and appearance; stability support available.

Can you support regulated workflows?

Yes. We offer RUO → GMP-like pathways with ISO-aligned QC and audit-ready documentation.

Request an LNP Formulation Plan

Tell us about your payload, target size/PDI, and intended use — we’ll propose a phased plan with timelines and QC..

Full Name *
Email *
Company / Institution *
Phone *
Target Size (nm)
EE% Goal
Modality
Notes (sequence chemistry, buffer, dose, FRR/TFR constraints, release tests)

By submitting, you agree to be contacted regarding your request.

Email Instead

References

  1. mRNA LNP design & advances — Nature Rev. Materials (2021)
  2. Ionizable lipid design for siRNA LNPs — Nature Biotech (2010)
  3. Microfluidic mixing controls liposome/LNP size — Jahn et al., 2010
  4. Early microfluidic vesicle assembly — JACS (2004)
  5. DLS sizing & PDI standard — ISO 22412:2017 (PDF)
  6. RiboGreen assay for EE%/free RNA — Thermo Fisher kit page; Protocol (PDF)
  7. Microfluidic hydrodynamic focusing overview — Micromachines (2016)
  8. Historical perspective (Cullis interview) — Nat. Rev. Materials (2021)
