Custom Dual-Labeled qPCR Probe Synthesis

Flexible fluorophore–quencher probe design for qPCR, molecular diagnostics, and fluorescence-based detection assays.

High-quality custom dual-labeled probes with broad dye and quencher options, custom reporter–quencher combinations, specialty labeling formats, and multiplex-ready configurations.

visible-range dye labeling Standard dual-labeled probes Dual-quencher formats Double-dye probe designs Branched dye constructs Multiplex qPCR compatible
Request a Quote View Dye–Quencher Matrix
Talk to a chemist Request a quote
Overview Architecture Reporter Dyes Quenchers Dye–Quencher Matrix Specialty Formats Design Considerations Contact

Overview

Dual-labeled oligonucleotide probes are widely used in real-time PCR, hydrolysis probe assays, molecular diagnostics, and fluorescence-based hybridization detection systems. These probes incorporate a fluorescent reporter dye and a quencher that suppresses fluorescence until probe hybridization or enzymatic cleavage occurs during amplification.

Custom probe designs may include conventional 5′ reporter / 3′ quencher architectures, dual-quencher systems, internal labeling strategies, branched dye formats, or specialized fluorescence configurations designed for multiplex qPCR instruments and fluorescence detection platforms.

The ability to configure reporter dye and quencher combinations across multiple spectral channels enables highly sensitive detection while minimizing background fluorescence and cross-talk in multiplex assays.

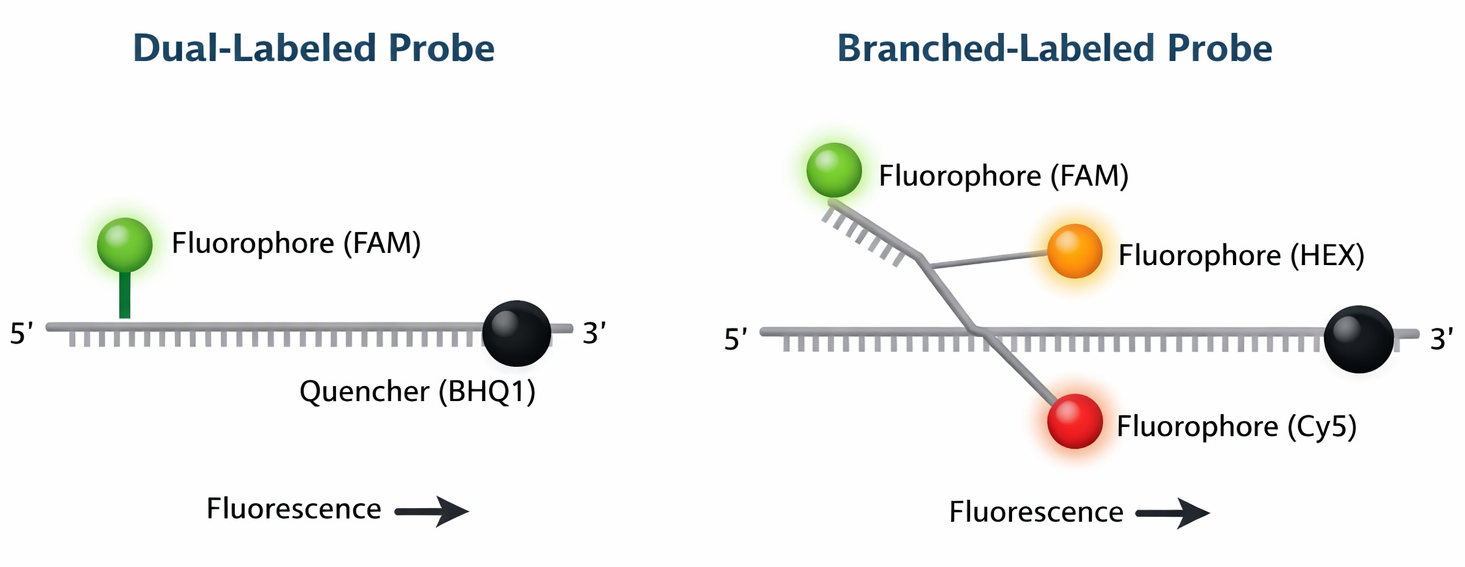

Dual labeled probe and branched labeled probe architecture showing fluorophore and quencher configurations used in qPCR detection
Dual-Labeled vs. Branched-Labeled Probe Architecture. Dual-labeled probes contain a reporter dye and quencher on opposite ends of the oligonucleotide, while branched-labeled probes introduce multiple fluorophores through branching linkers to enhance fluorescence signal and enable multiplex detection workflows.

Key Concept

Fluorescence signal is generated when the quencher is separated from the reporter dye during probe cleavage or hybridization. Optimized dye–quencher pairing improves signal-to-noise ratio, assay sensitivity, and multiplex compatibility in modern qPCR instruments.

Probe Architecture and Signal Generation

Standard Hydrolysis Probe Format

5′ Reporter Dye — Probe Sequence — 3′ Quencher

In qPCR hydrolysis probe assays, polymerase-mediated cleavage separates the reporter from the quencher, generating a fluorescence signal proportional to product accumulation.

Expanded Custom Formats

  • Internal dye labeling
  • Internal quencher placement
  • Dual-quencher probe designs
  • Double-dye reporter constructs
  • Branched multi-dye formats

How Dual-Labeled qPCR Probes Work

Dual-labeled qPCR probes generate signal through fluorescence quenching and signal release. In a standard hydrolysis probe assay, the reporter dye remains optically suppressed while it is held in proximity to the quencher. During amplification, polymerase cleavage separates the reporter from the quencher, allowing fluorescence to increase in proportion to target amplification.

This reporter–quencher mechanism is why probe architecture matters. Dye brightness, quencher efficiency, probe length, target position, and instrument optics all influence baseline suppression, signal intensity, and multiplex performance. For longer probes or lower-background assay windows, internal quenchers or dual-quencher layouts may improve performance.

Reporter dye Quencher Signal release Multiplex-compatible

Spectral Dye Groups for Easier Channel Planning and Assay Design

Reporter dye selection is not limited to a few standard qPCR fluorophores. Organizing dyes by spectral family helps researchers match probe designs to instrument optics, multiplex spacing, dye brightness, and assay background requirements. This section is intended as a spectral planning guide for channel selection and assay design. Confirmed catalog dyes and representative spectral families are shown below; availability of specific dyes depends on current catalog support, labeling compatibility, and project requirements.

Fluorescence Spectrum Guide

Use this quick spectrum guide to plan channel spacing, reduce spectral overlap, and choose dye families that fit your instrument filters and multiplex assay strategy.

350 nm
400
450
500
550
600
650
700+
UV / Violet
Blue
Cyan
Green
Yellow
Orange
Red
Far-Red / NIR

Need additional fluorophores beyond these representative examples, including ATTO dyes and other specialty labels? See more fluorescent dye options →

his section is intended as a spectral planning guide for short-wavelength channel selection. Confirmed catalog dyes and representative violet-family options are shown here; availability of specific dyes depends on current catalog support and labeling compatibility.

Dye Excitation Emission Typical Notes
Representative violet-region fluorophore Varies Varies Example short-wavelength family entry for channel planning; ask about current availability.
Alexa Fluor 405 ~401 nm ~421 nm Common violet-region dye for instrument-specific workflows.
Additional short-wavelength violet dye Varies Varies Representative family entry for specialty short-wavelength planning.
Other compatible violet dyes Varies Varies Additional project-specific violet-region fluorophores may be available.

This blue-channel section is presented as a spectral planning guide. Representative blue-family entries are shown for channel mapping and custom assay discussions; specific availability depends on current catalog support and labeling compatibility.

Dye Excitation Emission Typical Notes
Representative coumarin-family fluorophore Varies Varies Representative blue-family entry for specialty fluorescent probe and labeling applications.
Representative blue-to-cyan fluorophore Varies Varies Example family entry for expanded blue-to-cyan channel planning.
Additional blue-region fluorophore family Varies Varies Representative entry for custom short-wavelength planning.
Other compatible blue dyes Varies Varies Additional blue-region fluorophores available on request.

This cyan section is intended as a channel-planning guide. Cyan and cyan-green family examples can help refine spectral spacing in multiplex assay design; exact dye availability depends on current catalog support and labeling compatibility.

Dye Excitation Emission Typical Notes
Representative cyan or cyan-green fluorophore Varies Varies Example family entry used to refine spacing between neighboring channels.
Cyan-green family options Varies Varies Useful when optimizing channel separation around the green region.
Other compatible cyan dyes Varies Varies Additional cyan-family fluorophores may be matched to instrument optics.

Green reporters remain foundational for hydrolysis probes, hybridization assays, and general fluorescence detection workflows.

Dye Excitation Emission Typical Notes
FAM ~495 nm ~520 nm High-volume green-channel reporter for qPCR and hydrolysis probes.
FITC ~495 nm ~519 nm Classic fluorescein-family label for probe and conjugate design.
Fluorescein ~494 nm ~521 nm Broadly recognized green reporter family for detection workflows.
Alexa Fluor 488 ~495 nm ~519 nm Instrument-matched green label for certain fluorescence platforms.
Other compatible green dyes Varies Varies Additional green-region fluorophores may be available.

This yellow and yellow-green section supports multiplex channel planning. Confirmed catalog dyes are listed alongside representative family-level entries where useful for spectral mapping and assay design.

Dye Excitation Emission Typical Notes
HEX ~535 nm ~556 nm One of the most common multiplex qPCR reporter choices.
JOE ~520 nm ~548 nm Useful in multiplex probe and primer labeling strategies.
TET ~521 nm ~536 nm Classical reporter family for compatible systems.
Representative yellow-green fluorophore family Varies Varies Useful when multiplex channel spacing requires a yellow-green family member.
Other compatible yellow-green dyes Varies Varies Additional options may be matched to instrument filter sets.

This orange section is intended for channel planning between yellow-green and red spectral windows. Confirmed catalog dyes are shown with representative family guidance for custom fluorescence workflows.

Dye Excitation Emission Typical Notes
TAMRA ~555 nm ~580 nm Classic orange-region reporter and fluorescent quencher family member.
Representative yellow-orange fluorophore family Varies Varies Useful for yellow-orange channel planning in custom layouts.
Representative orange-region fluorophore family Varies Varies Useful for orange-channel fluorescence and imaging-related probe designs.
Other compatible orange dyes Varies Varies Additional orange-family options may be available.

This red section supports broader multiplex separation and instrument-aligned channel planning. Confirmed catalog dyes are shown with representative family guidance where helpful.

Dye Excitation Emission Typical Notes
Cy3 ~550 nm ~570 nm Widely used orange-red fluorophore for custom labeled probes.
ROX ~575 nm ~602 nm Useful in multiplex probe panels and red-channel workflows.
Texas Red ~595 nm ~615 nm Useful where stronger red-channel separation is desired.
Alexa Fluor 594 ~590 nm ~617 nm Instrument-matched red option for certain fluorescence systems.
Other compatible red dyes Varies Varies Additional red-region fluorophores may be available.

This far-red and near-infrared section supports extended multiplex planning and lower-background channel selection. Confirmed catalog dyes are shown with representative family guidance where applicable.

Dye Excitation Emission Typical Notes
Cy5 ~649 nm ~670 nm Widely used far-red fluorophore for custom probes and multiplex expansion.
Cy5.5 ~675 nm ~694 nm Longer-wavelength option for broader spectral spacing.
Cy7 ~743 nm ~767 nm Near-infrared dye for extended wavelength workflows.
Alexa Fluor 647 ~650 nm ~665 nm Common far-red family member for instrument-specific detection systems.
Other compatible far-red and NIR dyes Varies Varies Additional long-wavelength fluorophores may be available on request.

Quencher Options

Common Quenchers

  • BHQ1
  • BHQ2
  • BHQ3
  • DABCYL
  • TAMRA
  • Additional compatible quencher formats on request

Placement Options

  • 3′ terminal quenching
  • Internal quencher installation
  • Dual-quencher probe architecture
  • Custom quenching layouts for extended or specialized probes

Representative Dye–Quencher Matrix

Frequently requested formats include FAM-BHQ1 probes, HEX-BHQ1 probes, Cy5-BHQ2 probes, ROX-BHQ2 probes, Texas Red-BHQ2 probes, Cy3-BHQ2 probes, FAM-DABCYL probes, and dual-quencher FAM-BHQ1-BHQ1 probe formats. These exact dye–quencher combinations align with common ordering language used for qPCR probe synthesis, multiplex assay development, and custom fluorophore–quencher probe searches. The visible matrix below keeps high-intent combinations on-page for fast user scanning and search indexing, while the expanded sections capture a broader range of compatible examples and custom design space.

Reporter Dye Quencher Example Format Typical Use Notes
FAM BHQ1 5′-FAM probe / 3′-BHQ1 Standard qPCR detection High-volume green-channel hydrolysis probe format.
HEX BHQ1 5′-HEX probe / 3′-BHQ1 Multiplex qPCR Common second-channel multiplex option.
FAM DABCYL 5′-FAM probe / 3′-DABCYL General fluorescence assays Classical dye-quencher pairing.
Cy3 BHQ2 5′-Cy3 probe / 3′-BHQ2 Hybridization and fluorescence detection Orange-red region reporting.
ROX BHQ2 5′-ROX probe / 3′-BHQ2 Multiplex probe panels Useful for higher-plex layouts.
Texas Red BHQ2 5′-Texas Red probe / 3′-BHQ2 Red-channel detection Good spectral separation from green channels.
Cy5 BHQ2 5′-Cy5 probe / 3′-BHQ2 Far-red qPCR or probe assays Supports far-red multiplex expansion.
Cy5 BHQ3 5′-Cy5 probe / 3′-BHQ3 Far-red / NIR-adjacent assays Useful for deeper spectral separation.
FAM BHQ1 + BHQ1 5′-FAM / internal BHQ1 / 3′-BHQ1 Dual-quencher qPCR Reduced background for demanding assays.
FAM FAM FAM–probe–FAM Double-dye construct Higher brightness or specialty signal formats.
Cy3 Cy5 Cy3–probe–Cy5 FRET-style or specialty fluorescence assays Two-color reporter configuration.
Custom dye Custom quencher Project-specific layout Instrument-matched assay design Additional compatible combinations available on request.

Configuration Reporter Family Quencher Typical Use Technical Notes
FAM – BHQ1 Green BHQ1 Standard qPCR detection One of the most commonly requested dual-labeled probe formats.
FAM – BHQ2 Green BHQ2 Alternative quenching strategy Useful when optimizing assay background or quenching profile.
FAM – DABCYL Green DABCYL General fluorescence probes Classical dye-quencher pairing.
FAM – TAMRA Green TAMRA Specialized probe formats Applicable where fluorescent quencher behavior is desired.
FITC – BHQ1 Green BHQ1 Custom fluorescence probes Useful where FITC-like optical behavior is preferred.
FITC – DABCYL Green DABCYL General labeling and probe assays Traditional quencher pairing for FITC-like formats.
Fluorescein – BHQ1 Green BHQ1 Custom reporter-quencher probes Represents fluorescein-family compatibility space.
Alexa Fluor 488 – BHQ1 Green BHQ1 Instrument-specific fluorescence assays Useful when matching an Alexa-compatible green channel.
HEX – BHQ1 Yellow/Orange BHQ1 Multiplex qPCR Very common second-channel multiplex format.
HEX – BHQ2 Yellow/Orange BHQ2 Custom multiplex assays Alternative pairing for assay optimization.
HEX – DABCYL Yellow/Orange DABCYL General fluorescence probes Applicable for compatible yellow-orange reporter systems.
JOE – BHQ1 Yellow/Orange BHQ1 Multiplex PCR Useful where JOE-like spectral behavior is desired.
JOE – BHQ2 Yellow/Orange BHQ2 Custom multiplex detection Expanded quencher flexibility for multiplex design.
TET – BHQ1 Yellow/Orange BHQ1 Probe assay development Classical probe dye option for compatible systems.
TET – DABCYL Yellow/Orange DABCYL General fluorescence assays Traditional quencher pairing in some probe workflows.
VIC – BHQ1 Yellow/Orange BHQ1 Multiplex detection Suitable where VIC-like channel separation is required.
VIC – BHQ2 Yellow/Orange BHQ2 Custom multiplex probe design Expanded quenching option for channel-specific optimization.
TAMRA – BHQ2 Red BHQ2 Red-channel detection Red-shifted reporter format for compatible optical systems.
TAMRA – DABCYL Red DABCYL General fluorescence probe design Legacy or specialty quenching layout.
ROX – BHQ2 Red BHQ2 Multiplex qPCR Useful in higher-plex assay layouts.
ROX – BHQ3 Red BHQ3 Extended red/far-red multiplexing Applicable when stronger long-wavelength quenching is preferred.
ROX – DABCYL Red DABCYL Custom fluorescence assays Specialty red-channel quenching format.
Texas Red – BHQ2 Red BHQ2 High-sensitivity fluorescence assays Provides red-region reporting with good channel separation.
Texas Red – BHQ3 Red BHQ3 Longer-wavelength probe design Useful when extending red-channel assay space.
Texas Red – DABCYL Red DABCYL Custom probe design Alternative quenching layout for red reporters.
Alexa Fluor 594 – BHQ2 Red BHQ2 Instrument-specific fluorescence assays Useful where Alexa-family red channels are preferred.
Cy3 – BHQ2 Orange-Red BHQ2 Hybridization and fluorescence detection Common orange-red reporter format.
Cy3 – BHQ3 Orange-Red BHQ3 Custom multiplex design Alternative quencher choice depending on probe behavior.
Cy3 – DABCYL Orange-Red DABCYL General fluorescence assays Specialty pairing for custom probe projects.
Cy3.5 – BHQ2 Orange-Red BHQ2 Expanded multiplex channel design Useful when intermediate spectral spacing is desired.
Cy5 – BHQ2 Far-Red BHQ2 Far-red qPCR or probe assays Widely used for far-red channels and multiplex expansion.
Cy5 – BHQ3 Far-Red BHQ3 Far-red / NIR-adjacent assays Suitable when deeper spectral separation is needed.
Cy5 – DABCYL Far-Red DABCYL Custom far-red probe design Applicable to specialty custom quenching layouts.
Cy5.5 – BHQ3 Far-Red BHQ3 Extended far-red fluorescence assays Useful for broader spectral multiplex spacing.
Cy7 – BHQ3 Near-IR BHQ3 Near-infrared probe design Specialized long-wavelength probe option.
Alexa Fluor 647 – BHQ3 Far-Red BHQ3 Instrument-specific far-red assays Useful where Alexa-compatible far-red detection is preferred.
Alexa Fluor 647 – BHQ2 Far-Red BHQ2 Custom far-red probe assays Alternative quenching profile for compatible systems.
Custom green dye – BHQ1 Custom BHQ1 Instrument-matched probe design Representative of broader green-channel custom pairing space.
Custom orange/red dye – BHQ2 Custom BHQ2 Multiplex assay development Representative of broader orange-red pairing space.
Custom far-red dye – BHQ3 Custom BHQ3 Far-red and extended multiplex design Represents custom long-wavelength compatibility space.

Configuration Architecture Type Technical Rationale Typical Use Notes
FAM – internal BHQ1 – BHQ1 Dual-quencher probe Additional quenching can reduce background and improve signal-to-noise. Longer qPCR probes, sensitive assays Valid non-ZEN dual-quencher example.
HEX – internal BHQ1 – BHQ1 Dual-quencher probe Supports multiplex probe optimization with additional quenching capacity. Multiplex qPCR Useful for longer HEX-based probes.
Cy3 – internal BHQ2 – BHQ2 Dual-quencher probe Useful when stronger suppression is desired in orange-red probe systems. Fluorescence detection assays Expanded quenching layout.
Cy5 – internal BHQ2 – BHQ3 Dual-quencher probe Applicable to extended far-red probe designs requiring tailored quenching. Far-red multiplex assays Useful for longer-wavelength probe systems.
FAM – internal DABCYL – BHQ1 Dual-quencher probe Hybrid quenching layout for assay-specific optimization. Specialty qPCR designs Applicable when custom internal quencher layouts are needed.
Cy3 – internal DABCYL – BHQ2 Dual-quencher probe Additional suppression in orange-red probe systems. Custom fluorescence assays Project-specific layout example.
FAM – probe – FAM Double-dye reporter Can increase apparent brightness in specialty constructs. High-signal probe concepts Representative double-FAM design.
HEX – probe – HEX Double-dye reporter Higher signal option within the yellow-orange channel. Custom fluorescence detection Useful for specialized brightness targets.
Cy3 – probe – Cy3 Double-dye reporter Increased reporter density in orange-red channel. Custom hybridization assays Useful for specialty signal design.
TAMRA – probe – TAMRA Double-dye reporter Higher reporter loading in red channel. Custom fluorescence assays Compatible with project-specific probe layouts.
Cy5 – probe – Cy5 Double-dye reporter Enhanced far-red signal concept. Custom far-red assays Useful where strong far-red reporting is desired.
FAM – probe – Cy5 Double-dye mixed reporter Two-color reporter construct for specialty fluorescence behavior. FRET-style and custom assays Mixed reporter layout.
Cy3 – probe – Cy5 Double-dye mixed reporter Two-color reporter design supporting specialty optical readouts. FRET-style applications Common two-color conceptual example.
HEX – probe – Cy5 Double-dye mixed reporter Broadens specialty reporter geometry options. Custom assay development Useful for project-specific fluorescence workflows.
FAM-branch-FAM – BHQ1 Branched-dye probe Multiple reporter loading can increase brightness. High-sensitivity detection Representative branched green-channel format.
Cy3-branch-Cy3 – BHQ2 Branched-dye probe Higher reporter density in orange-red region. Custom fluorescence detection Useful for bright specialty probes.
Cy5-branch-Cy5 – BHQ3 Branched-dye probe Enhanced far-red brightness concept. Far-red detection Representative branched far-red layout.
FAM-branch-Cy5 – BHQ2 Branched mixed-dye probe Mixed reporter design for specialty optical outputs. Custom multiplex-style probes Project-specific mixed reporter example.
Internal FAM / terminal BHQ1 Internal reporter Adjusts dye geometry relative to hybridization region. Custom structural and hybridization assays Internal-label example.
Internal Cy3 / terminal BHQ2 Internal reporter Useful where dye placement affects probe behavior. Custom fluorescence assays Internal orange-red label option.
Internal Cy5 / terminal BHQ3 Internal reporter Allows far-red label placement within probe architecture. Custom far-red probe design Internal far-red example.
Internal TAMRA / terminal quencher Internal reporter Red-region internal labeling for project-specific formats. Custom fluorescence detection Specialty internal-label example.

Search-Friendly Combination Families

This grouped combination block expands long-tail keyword coverage without turning the page into an unstructured list. It keeps high-intent shorthand formats visible in clean reporter-family clusters that are easy for both researchers and search engines to interpret.

FAM and Green Reporters

  • FAM-BHQ1 probe
  • FAM-BHQ2 probe
  • FAM-DABCYL probe
  • FAM-TAMRA probe
  • FITC-BHQ1 probe
  • Alexa Fluor 488-BHQ1 probe
HEX and Yellow-Orange Reporters
  • HEX-BHQ1 probe
  • HEX-BHQ2 probe
  • HEX-DABCYL probe
  • JOE-BHQ1 probe
  • JOE-BHQ2 probe
  • TET-BHQ1 probe
Red-Channel Reporters
  • Cy3-BHQ2 probe
  • ROX-BHQ2 probe
  • ROX-BHQ3 probe
  • Texas Red-BHQ2 probe
  • TAMRA-BHQ2 probe
  • Alexa Fluor 594-BHQ2 probe
Far-Red and NIR Reporters
  • Cy5-BHQ2 probe
  • Cy5-BHQ3 probe
  • Cy5.5-BHQ3 probe
  • Cy7-BHQ3 probe
  • Alexa Fluor 647-BHQ2 probe
  • Alexa Fluor 647-BHQ3 probe

Additional ATTO dyes, Cy dyes, Alexa Fluor dyes, custom fluorophores, and project-specific dye-quencher pairings can also be discussed for multiplex qPCR, hydrolysis probes, fluorescence hybridization assays, and specialty detection workflows.

Common Search Variants for Dye–Quencher Probe Ordering

FAM family: FAM-BHQ1 probe, FAM BHQ1 probe, 5′ FAM 3′ BHQ1 probe, FAM-DABCYL probe, FAM-labeled qPCR probe.

HEX family: HEX-BHQ1 probe, HEX BHQ1 probe, HEX-BHQ2 probe, 5′ HEX 3′ BHQ1 probe, HEX-labeled qPCR probe.

Cy5 family: Cy5-BHQ2 probe, Cy5 BHQ2 probe, Cy5-BHQ3 probe, 5′ Cy5 3′ BHQ2 probe, far-red qPCR probe.

ROX family: ROX-BHQ2 probe, ROX BHQ2 probe, ROX-labeled qPCR probe, red-channel qPCR probe.

Texas Red family: Texas Red-BHQ2 probe, Texas Red BHQ2 probe, Texas Red-labeled probe, red fluorophore quencher probe.

Cy3 family: Cy3-BHQ2 probe, Cy3 BHQ2 probe, Cy3-labeled probe, orange-red fluorophore quencher probe.

Extended Dye and Quencher Compatibility Reference

For an expanded list of fluorophore and quencher combinations including FAM, HEX, TAMRA, ROX, Cy dyes, ATTO dyes, Alexa Fluor dyes, and additional fluorescent labeling chemistries, see the complete reference guide below.

Download Dye and Quencher Compatibility Guide (PDF)

Custom Probe Configuration Families

Standard Dual-Labeled Probes

5′ reporter and 3′ quencher designs remain the core format for hydrolysis probes, routine qPCR, and many molecular diagnostic assays.

FAM-BHQ1 HEX-BHQ1 Cy5-BHQ2

Dual-Quencher Probes

Additional internal quenchers can improve quenching efficiency, reduce background, and help longer probes perform more cleanly in demanding assays.

Internal quencher Lower background Longer probes

Double-Dye and Branched-Dye Probes

Higher reporter loading and mixed reporter layouts support specialty fluorescence behavior, increased brightness, and assay-specific optical design.

Double-dye Branched dye FRET-style

Design Considerations

Choose the Spectral Window First

Reporter selection should start with instrument optics and multiplex channel spacing. In many assays, the dye choice determines which quencher family and probe architecture will perform best.

Green Orange/Red Far-red

Match Quenching Strategy to Probe Length

Shorter probes often work well with standard terminal quenching, while longer probes and lower-background applications may benefit from internal quenchers or dual-quencher layouts.

Standard quench Dual quench Longer probes

Technical Design Guidance

For hydrolysis probe development, dye brightness, quencher efficiency, probe length, GC content, target position, and PCR cycling conditions all influence assay performance. Multiplex designs also require practical channel spacing, minimized bleed-through, and compatible thresholding behavior across reporters. When probes become longer or are pushed into more demanding analytical windows, background suppression can become limiting, which is one reason dual-quencher or internal-quencher designs may be helpful.

Specialty double-dye or branched-dye constructs are not a universal replacement for standard hydrolysis probes, but they can be useful in custom fluorescence workflows, hybridization assays, or projects that need unusually strong signal or specialized optical behavior. Internal label placement can also be strategically used when probe geometry, structure, or signal readout benefits from moving the reporter away from the terminus.

Design Goal Preferred Strategy Why It Helps
Routine singleplex qPCR Standard 5′ reporter / 3′ quencher probe Simple, robust, and widely validated architecture.
Multiplex PCR panel Spectrally separated reporter set with matched quenchers Improves channel resolution and reduces signal overlap.
Longer probe with low background target Internal quencher or dual-quencher layout Can reduce baseline fluorescence and improve signal-to-noise.
Very bright specialty probe Double-dye or branched-dye concept Supports higher reporter loading for custom optical workflows.
Geometry-sensitive hybridization probe Internal label placement Moves reporter position relative to the hybridizing sequence.

Multiplex qPCR Probe Design Considerations

Multiplex qPCR probe design requires careful reporter dye and quencher selection so that each target can be detected in a distinct instrument channel with minimal spectral overlap. In practice, multiplex assay performance depends on dye brightness, emission spacing, quencher efficiency, probe concentration balance, and the optical filter configuration of the qPCR instrument.

Common multiplex panel layouts often distribute reporter dyes across green, yellow-green, orange-red, red, and far-red channels. Representative multiplex-compatible dye families include FAM, HEX, JOE, Cy3, ROX, Texas Red, Cy5, and other custom fluorophores selected for instrument compatibility and channel separation.

Channel Region Representative Dyes Typical Use
Green FAM, FITC, Alexa Fluor 488 Primary reporter channel in singleplex and multiplex qPCR
Yellow / Yellow-Green HEX, JOE, TET Second-channel multiplex target detection
Orange / Red Cy3, TAMRA, ROX, Texas Red Expanded multiplex spacing and red-channel assays
Far-Red / NIR Cy5, Cy5.5, Cy7, Alexa Fluor 647 Extended multiplex panels and lower-background detection

Proper spectral spacing and quencher selection help reduce channel bleed-through and improve performance in multiplex hydrolysis probe assays, multiplex TaqMan-style qPCR, and multi-target molecular diagnostic workflows.

Purification and Quality Control

Manufacturing Scope

Custom dual-labeled probes can be configured across a broad dye and quencher design space with attention to sequence, modification compatibility, purification needs, and intended analytical use. HPLC purification is commonly used for labeled probes to improve product quality in demanding assay workflows.

Analytical Confirmation

Typical QC workflows for labeled probes can include mass confirmation, analytical HPLC, UV or fluorometric evaluation, and fit-for-purpose review of the labeled construct. The appropriate analytical package depends on the probe architecture and application.

Common qPCR Probe Dye–Quencher Combinations

Researchers often search for probe synthesis using exact dye–quencher shorthand. Common examples include FAM-BHQ1 probes, HEX-BHQ1 probes, Cy5-BHQ2 probes, Texas Red-BHQ2 probes, ROX-BHQ2 probes, and Cy3-BHQ2 probes. Bio-Synthesis supports these widely requested combinations as well as broader custom fluorophore–quencher probe formats for multiplex qPCR, hydrolysis probes, and custom fluorescence assays.

FAM-BHQ1 HEX-BHQ1 Cy5-BHQ2 Texas Red-BHQ2 ROX-BHQ2 Cy3-BHQ2

FAQ

What is a dual-labeled probe used for?

Dual-labeled probes are widely used in real-time PCR, hydrolysis probe assays, molecular diagnostics, fluorescence hybridization systems, and multiplex detection workflows.

Can you make custom dye–quencher combinations beyond common qPCR formats?

Yes. Standard formats such as FAM BHQ1 are common, but broader compatible reporter dye and quencher combinations can also be configured for custom assay needs.

Do dual-quencher probes help with assay background?

They can. Adding an internal quencher may reduce baseline fluorescence and improve signal-to-noise, especially for longer probes or more demanding assay conditions.

Can dual-labeled probes be designed for multiplex qPCR instruments?

Yes. Multiplex probe sets can be configured with spectrally separated dyes and appropriate quenchers to match instrument channels and reduce cross-talk.

More FAQ'sAll FAQ's

Contact & Quote Request

For the fastest quote, share the probe sequence, desired reporter dye, quencher, probe length, purification requirements, assay type, and whether the project needs standard, dual-quencher, internal-label, double-dye, or branched-dye architecture. If you do not find the exact dye, quencher, or probe configuration you are looking for on this page, do not hesitate to contact us for additional custom options.

Quote checklist

  • Sequence and length
  • Reporter dye and quencher
  • Probe architecture
  • Purification and QC needs

Fastest path

Contact Us Request a Quote

Key Literature on Fluorescent Probe Design and qPCR Detection

  1. Marras SAE, Kramer FR, Tyagi S. Efficiencies of fluorescence resonance energy transfer and contact-mediated quenching in oligonucleotide probes. Nucleic Acids Research. 2002.
  2. Tyagi S, Kramer FR. Molecular beacons: probes that fluoresce upon hybridization. Nature Biotechnology. 1996.
  3. Livak KJ, Flood SJ, Marmaro J, Giusti W, Deetz K. Oligonucleotides with fluorescent dyes at opposite ends provide a quenched probe system useful for detecting PCR product and nucleic acid hybridization. PCR Methods and Applications. 1995.
  4. Heid CA, Stevens J, Livak KJ, Williams PM. Real-time quantitative PCR. Genome Research. 1996.
  5. Kubista M, Andrade JM, Bengtsson M, et al. The real-time polymerase chain reaction. Molecular Aspects of Medicine. 2006.

Why Choose Bio-Synthesis

Trusted by biotech leaders worldwide for over 45+ years of delivering high quality, fast and scalable synthetic biology solutions.

Greetings Researchers,

Please be advised that any information, guidelines, writeups, and oral/video/graphic content on our website are intended solely as general guidelines.
It is the researcher's sole responsibility to conduct thorough research on the designs of the products intended for their experiments before submitting
their designs to Biosynthesis for review of production feasibility.
Thank you for your understanding.

Quick Links
