Thiol-Modified Oligonucleotides

Custom DNA and RNA thiol modifications for post-synthetic conjugation, gold binding, and disulfide-linked oligo constructs.

Thiol-modified oligos with 5′, 3′, and internal thiol handles for maleimide coupling, gold nanoparticle attachment, surface immobilization, redox-sensitive linkages, and broader oligonucleotide bioconjugation workflows.

5′ / 3′ / internal thiol Maleimide conjugation ready Gold surface compatible Protected and deprotected formats DNA & RNA compatible
Request a quote View Thiol Modifiers
Talk to a chemist Request a quote
Overview Conjugation Chemistry Available Thiol Modifiers Applications Design Considerations Purification & QC Contact

Overview

Thiol-modified oligonucleotides are synthetic DNA or RNA molecules containing sulfhydryl (-SH) functional groups that enable highly useful conjugation chemistries for dyes, proteins, polymers, nanoparticles, surfaces, and other biomaterials. Thiol handles are especially important in maleimide coupling, disulfide exchange chemistry, and gold-binding applications.

Thiol modifiers can be introduced at the 5′ terminus, 3′ terminus, or internal positions using thiol phosphoramidites, thiol-linked nucleosides, or specialized internal modifiers. Because thiol groups are reactive and oxidation-sensitive, they are commonly installed in protected form and deprotected before downstream conjugation or surface attachment.

Thiol-modified oligos are widely used in gold nanoparticle functionalization, gold-coated biosensor surfaces, maleimide-linked oligo conjugates, cleavable disulfide systems, and targeted delivery research where redox-sensitive or surface-active linkages are required.

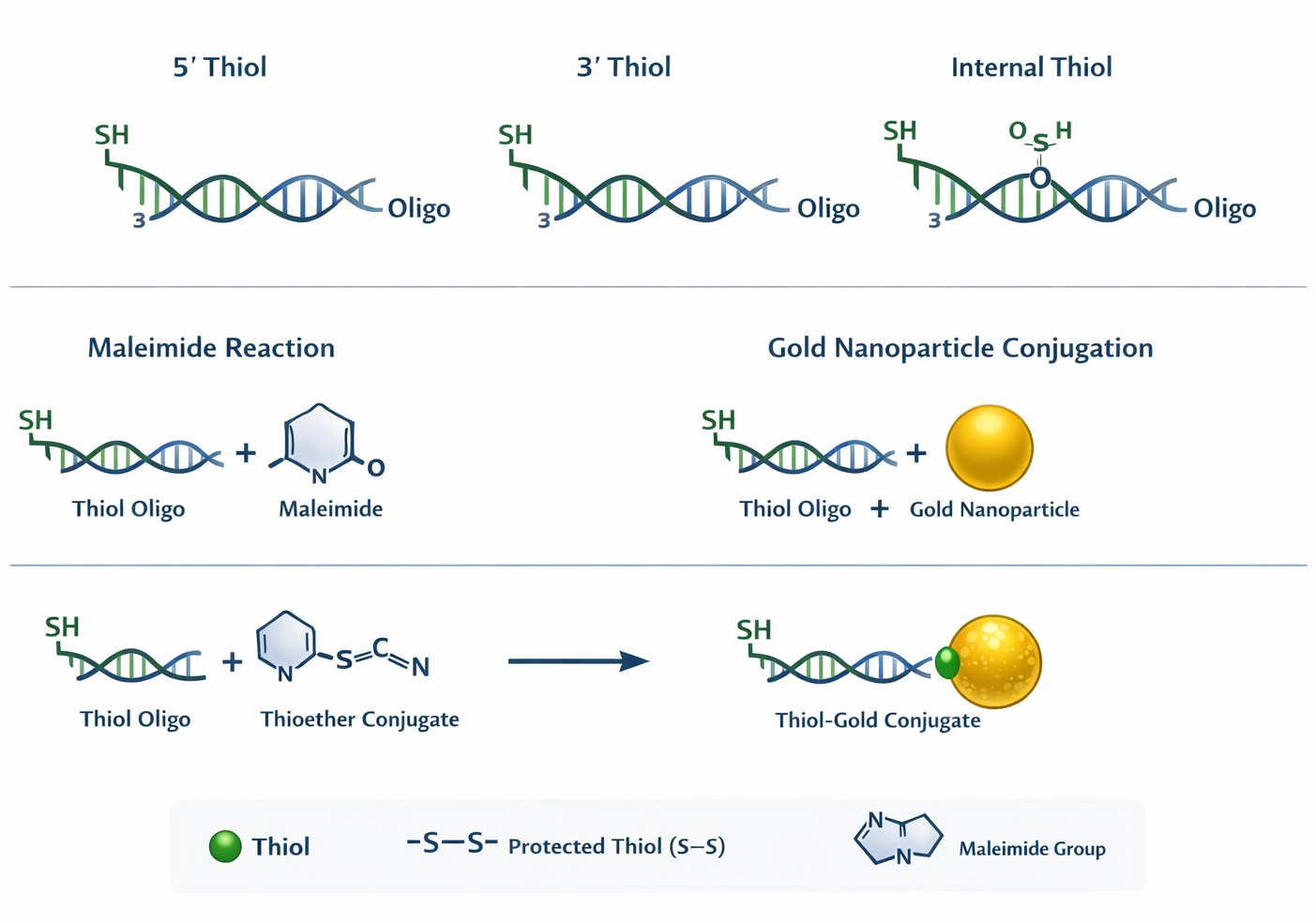

Thiol-modified oligonucleotide architecture showing 5-prime, 3-prime, and internal thiol handles for conjugation and gold attachment
Thiol-Modified Oligonucleotide Architecture. Representative terminal and internal thiol installations used for maleimide coupling, gold binding, and disulfide-linked oligo conjugation workflows.
Design insight: the optimal thiol modifier depends on conjugation chemistry, whether the thiol should be protected or free, desired linker length, target surface or biomolecule, and whether reductive or disulfide-sensitive release is required.

Conjugation Chemistry with Thiol-Modified Oligos

Common Thiol-Reactive Chemistries

  • Maleimide coupling for dye, peptide, protein, and polymer attachment
  • Disulfide exchange and activated disulfide conjugation
  • Gold surface and gold nanoparticle attachment
  • Self-assembled monolayer formation on thiol-reactive materials

Why Thiol Modifiers Are Useful

  • Highly useful for gold-binding and nanosurface applications
  • Compatible with maleimide-based bioconjugation workflows
  • Can support redox-sensitive disulfide-linked designs
  • Available in terminal and internal formats for directional conjugation

Available Thiol-Modified Oligonucleotide Modifications

The list below shows common thiol-bearing oligo formats used for post-synthetic coupling, gold attachment, and disulfide-sensitive conjugation. Protected thiol forms are often preferred during synthesis and shipment.

Common Thiol Modifiers for Oligonucleotide Synthesis
Modification Category Position Options Description / Typical Use
5′-Thiol Modifier C6 S-S Protected terminal thiol 5′ Common disulfide-protected terminal thiol linker used for maleimide coupling, gold binding, and general post-synthetic conjugation.
3′-Thiol Modifier C3 S-S Protected terminal thiol 3′ 3′ terminal protected thiol used when directional conjugation from the 3′ end is preferred.
5′-Thiol Modifier C6 Terminal thiol 5′ Terminal thiol handle for coupling to maleimides, gold nanoparticles, and thiol-reactive surfaces.
3′-Thiol Modifier C3 Terminal thiol 3′ Compact 3′ thiol linker suitable for surface attachment and disulfide-linked conjugates.
5′-Thiol Modifier C12 Long terminal thiol linker 5′ Longer spacer used when additional distance from the oligo backbone or surface is needed.
Thiol-Modifier dT Internal thiol nucleoside Internal Thymidine-linked thiol handle for site-specific internal conjugation and structural probe design.
Thiol C6 dT Internal thiol nucleoside Internal / defined sequence position Internal thiol-bearing thymidine format for selective labeling and conjugation at a chosen site.
Thiol-Modifier Serinol Flexible thiol linker Internal / terminal depending on design Flexible thiol-containing spacer that improves accessibility in sterically crowded systems.
Thiol-TEG Flexible thiol linker 5′ / 3′ / internal depending on route Triethylene glycol spacer improves flexibility and helps reduce steric hindrance for macromolecule or surface conjugation.
Activated Disulfide Formats Specialized thiol chemistry Format dependent Useful for disulfide exchange workflows, reductively cleavable conjugates, and redox-responsive builds.

Typical Applications

Gold Nanoparticle Conjugation

Thiol-modified oligos are widely used to functionalize gold nanoparticles through strong sulfur–gold interactions for diagnostics, biosensing, nanotechnology, and programmable surface assembly.

Maleimide Coupling

Free thiol handles react efficiently with maleimide-functionalized dyes, peptides, proteins, and polymers to form stable thioether-linked oligo conjugates.

Gold Surface Immobilization

Thiol-bearing oligos are commonly used on gold-coated electrodes, SPR chips, and biosensor surfaces for capture, hybridization, and analytical detection platforms.

Redox-Sensitive Designs

Disulfide-based thiol formats can support cleavable or redox-responsive oligo conjugates for delivery and controlled-release concepts.

Probe and Biomolecule Conjugation

Thiol handles can be used to attach oligos to dyes, ligands, proteins, peptides, and other biomolecules where controlled sulfhydryl coupling chemistry is preferred.

Nanomaterial Functionalization

Beyond gold nanoparticles, thiol-modified oligos can support attachment to thiol-reactive materials and nanostructured surfaces for advanced assay development.

Design Considerations

Protected vs Free Thiol

Protected thiol formats are often preferred during synthesis, purification, and storage because they reduce premature oxidation and undesired side reactions. Deprotection is typically performed prior to conjugation.

Protected for stabilityFree thiol for couplingAvoid oxidation

Choose Spacer Length Carefully

Short thiol linkers can be suitable for compact constructs, while longer spacers such as C6, C12, or TEG-based linkers improve accessibility when conjugating to surfaces, nanoparticles, proteins, or polymers.

C3 compactC6 balancedC12 / TEG accessible

Which Thiol Format Should You Choose?

Use a standard terminal thiol when direct maleimide coupling or gold attachment is needed, a longer linker when steric accessibility matters, and an internal thiol nucleoside when site-specific conjugation within the sequence is important. Disulfide-based formats are especially useful when a cleavable or redox-sensitive linkage is desired.

Gold nanoparticle readyMaleimide coupling compatibleDisulfide-cleavable options

Purification and Quality Control

Purification

Typical purification options include HPLC and PAGE depending on oligo length, thiol format, and downstream conjugation requirements. Reducing conditions may be considered during handling of deprotected thiols.

Analytical Confirmation

Common QC methods include MALDI-TOF or LC-MS, analytical HPLC, UV quantification, and fit-for-purpose confirmation of the thiol-bearing oligo before or after deprotection.

FAQ

What are thiol-modified oligonucleotides used for?

They are widely used for maleimide coupling, gold nanoparticle attachment, biosensor surfaces, and disulfide-linked oligo conjugation workflows.

Can thiol modifiers be placed internally?

Yes. Internal thiol placement is possible using thiol-bearing nucleosides or internal thiol linker strategies depending on the chemistry.

Why are thiol groups often protected?

Protection helps prevent oxidation and undesired side reactions during synthesis, purification, storage, and shipment.

What reagents react with thiol-modified oligos?

Maleimides, activated disulfides, gold surfaces, gold nanoparticles, and related thiol-reactive systems are commonly used.

More FAQ'sAll FAQ's

Contact & Quote Request

For the fastest quote, share your oligonucleotide sequence, DNA or RNA type, desired thiol modifier, position, protected or deprotected preference, synthesis scale, and purification requirements.

Quote checklist

  • Sequence and format
  • Thiol modifier and position
  • Protected vs free thiol preference
  • Scale and purity target

Fastest path

  • Phone: +1-800-227-0627 | 1-972-420-8505
Request a Quote Speak to a Chemist

Recommended reading

  • Hermanson GT. Bioconjugate Techniques. Academic Press.
  • Katz E, Willner I. Integrated nanoparticle–biomolecule hybrid systems: synthesis, properties, and applications.
  • Reviews covering thiol–gold interactions, maleimide coupling, and thiol-based oligonucleotide conjugation workflows.
  • Literature on disulfide-linked oligo conjugates and redox-responsive nucleic acid delivery concepts.
