smFISH Probes

Custom smFISH probe design and synthesis for single-molecule RNA imaging, transcript localization, and spatial gene expression analysis.

smFISH probes are sequence-defined oligonucleotide sets for precise single-RNA detection, enabling transcript quantification and spatial localization in cells and tissues.

What Are smFISH Probes?

smFISH probes are short fluorescently labeled oligonucleotides used in coordinated probe sets to detect individual RNA molecules by single-molecule fluorescence in situ hybridization. Unlike bulk hybridization methods that report averaged signal, smFISH is designed to visualize and count discrete transcript molecules in fixed cells or tissues.

A typical smFISH assay uses multiple oligonucleotides per transcript target, each hybridizing to a different region of the same RNA. When enough probes bind, the combined fluorescence signal appears as a bright diffraction-limited spot corresponding to a single RNA molecule. This makes smFISH especially useful for transcript counting, cell-to-cell variability analysis, and intracellular RNA localization studies.

Because smFISH depends on both sequence specificity and cumulative signal generation, probe-set design is as important as fluorophore choice. Probe number, tiling density, transcript accessibility, labeling strategy, and imaging configuration all contribute to final assay performance.

single-molecule RNA FISH transcript localization spatial RNA imaging fluorescent probe sets multiplex-capable ISO 9001:2015 / ISO13485:2016 45+ Years of Expertise U.S.A. Facilities-Texas
smFISH probes are best understood as cooperative fluorescent oligonucleotide sets engineered to generate detectable single-molecule signal when multiple probes bind the same RNA target.

Representative smFISH Probe Architecture

An smFISH experiment usually uses many short probes targeting the same RNA, each carrying a fluorophore or readout-compatible labeling strategy.

Representative smFISH probe architecture showing multiple fluorescent oligonucleotides tiled along a target RNA transcript
smFISH probe architecture. Multiple short labeled oligonucleotides hybridize to the same RNA target to generate a detectable single-molecule fluorescence signal.
Component Function Why it matters
Target-binding oligo Hybridizes to a defined region of the transcript Drives specificity and transcript recognition
Probe set Multiple probes target the same RNA Builds cumulative signal for single-molecule detection
Fluorophore or readout label Provides optical signal for microscopy Controls brightness, multiplexing, and background
Tiling strategy Distributes probes across accessible transcript regions Improves robustness and detection efficiency

Single-Molecule RNA Spot Detection

smFISH visualizes individual transcripts as diffraction-limited fluorescent spots after multiple labeled probes bind the same RNA target.

smFISH workflow and single-molecule RNA spot detection showing probe binding and fluorescent RNA dots in cells
smFISH workflow and RNA spot detection. Multi-probe binding enables visualization of individual RNA molecules as discrete fluorescent spots in fixed cells.
Why this matters: Unlike bulk readouts, smFISH preserves the native spatial context of each RNA molecule, enabling direct transcript counting and intracellular localization analysis.

Key Features and Design of smFISH Probes

Multi-Probe Signal Amplification

smFISH relies on dozens of probes binding a single RNA to generate a detectable fluorescent spot.

  • Typically 20–48 probes per transcript
  • Signal scales with probe count
  • Improves detection sensitivity

High Specificity

Each probe targets a unique region of the transcript, minimizing off-target binding.

  • Sequence-defined targeting
  • Reduced cross-hybridization
  • Single-molecule accuracy

Spatial Resolution

smFISH preserves intracellular RNA localization at subcellular resolution.

  • Single-molecule spot detection
  • Compatible with confocal and widefield imaging
  • Supports spatial transcriptomics validation

Fluorescent Labeling Strategies for smFISH Probes

Fluorescent labeling is central to smFISH performance because signal intensity depends on the combined optical output of the entire probe set. Probe sets may be built with directly labeled oligonucleotides or with more modular readout approaches depending on the complexity of the experiment.

Direct Fluorophore Labeling

  • Simple and widely used for classic smFISH
  • Strong, direct signal from each probe
  • Suitable for targeted transcript counting
  • Common dyes include Cy3, Cy5, Alexa Fluor, and ATTO series

Readout-Based Labeling

  • Useful for higher-complexity or multiplex-capable architectures
  • Can reduce redesign burden across fluorophore sets
  • Supports more scalable imaging workflows
  • Can overlap conceptually with seqFISH or MERFISH-style readout systems

Commonly Used Fluorophores for smFISH Probes

Dye Excitation / Emission (nm) Key Advantage Notes
Quasar 570 ~548 / 566 Optimized for smFISH probe sets Widely used in Stellaris-style assays
Quasar 670 ~647 / 670 Low background, high sensitivity Excellent for tissue imaging
CAL Fluor 590 ~590 / 617 High brightness and stability Alternative to Cy3-like dyes
Cy3 ~550 / 570 Bright and widely validated Standard smFISH dye
Cy5 ~650 / 670 Low autofluorescence background Common for multiplex panels
Alexa Fluor 488 ~495 / 519 High brightness Green channel imaging
Alexa Fluor 647 ~650 / 668 Excellent photostability Super-resolution compatible
DAPI (counterstain) ~358 / 461 Nuclear reference staining Used alongside smFISH probes

Dye selection should consider microscope configuration, spectral overlap, and sample autofluorescence. Red and far-red dyes (e.g., Cy5, Quasar 670) typically provide higher signal-to-noise in biological samples.

Experimental Considerations for smFISH

Probe Design Density

  • More probes → stronger signal
  • Limited by transcript length
  • Avoid highly structured regions

Hybridization Conditions

  • Temperature affects specificity
  • Salt concentration impacts binding
  • Formamide improves stringency

Imaging System

  • Match dyes to laser lines
  • Detector sensitivity matters
  • Minimize spectral overlap

Background Signal

  • Autofluorescence varies by tissue
  • Use far-red dyes when possible
  • Optimize washing conditions

Spot Detection

  • Requires sufficient signal intensity
  • Affected by probe count
  • Dependent on imaging resolution

Multiplex Limitations

  • Spectral channels are limited
  • Sequential imaging increases capacity
  • Transition to seqFISH for higher plex
Practical insight: smFISH performance is governed as much by experimental setup as probe design. Dye choice, imaging system, and hybridization conditions directly impact whether individual RNA molecules can be reliably detected.

Applications of smFISH Probes

Single-Molecule RNA Counting

Quantify transcript molecules cell by cell rather than relying on population averages.

Transcript Localization

Map where RNAs reside inside cells or tissues to study trafficking and compartmentalization.

Cell-to-Cell Heterogeneity

Measure expression variability across individual cells with high spatial context.

Validation of Sequencing Results

Confirm transcript presence and localization identified by bulk or single-cell sequencing workflows.

Typical smFISH Design Workflow

A representative smFISH workflow progresses from target selection and probe-set design to fluorescent labeling, hybridization, imaging, and spot-based RNA analysis.

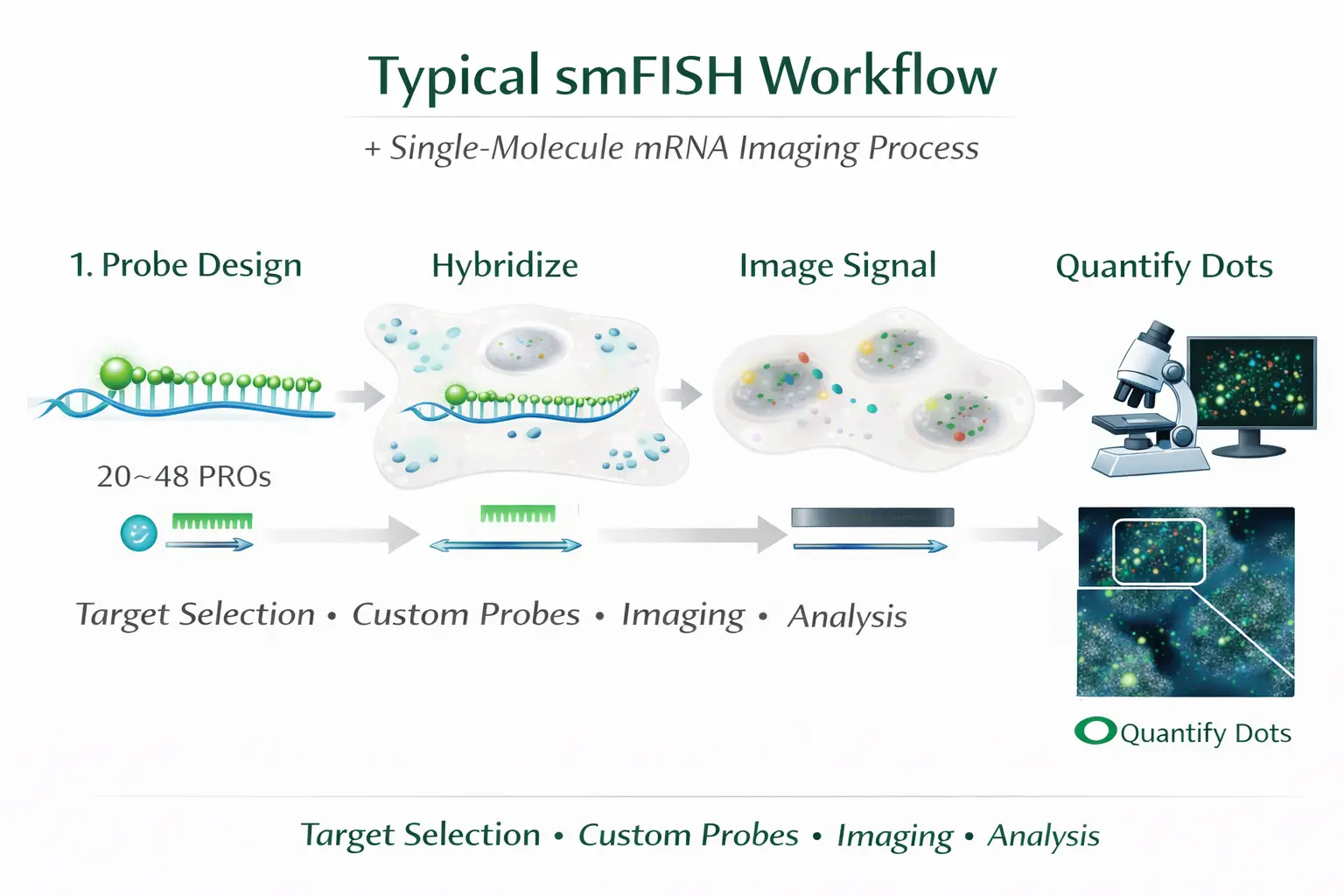

Typical smFISH workflow showing probe design, hybridization, imaging, and RNA spot analysis
Typical smFISH workflow. Probe design and fluorescent labeling enable single-molecule RNA imaging and transcript counting in fixed samples.
Practical note: A strong smFISH design depends on transcript accessibility, probe count, fluorophore choice, hybridization conditions, and the imaging setup used to detect individual fluorescent spots.

smFISH vs seqFISH vs MERFISH

smFISH, seqFISH, and MERFISH all use synthetic oligonucleotide hybridization for RNA imaging, but they differ in complexity, multiplexing strategy, and decoding logic.

Feature smFISH seqFISH MERFISH
Primary role Single-molecule RNA detection Sequential multiplex RNA imaging Error-robust multiplex RNA imaging
Typical plex Low to moderate Moderate to high High to very high
Readout style Direct spot detection Sequential imaging cycles Barcode-based decoding
Best use case Precise transcript counting and localization Multiplex spatial RNA imaging Large-scale spatial transcriptomics
Use smFISH when the main goal is accurate single-molecule transcript counting and localization. Move toward seqFISH or MERFISH when multiplexing depth becomes the main design driver.

Design Considerations for smFISH Probes

Probe Count per Transcript

Signal depends on the number of probes that can bind the same RNA molecule.

  • More probes usually improve spot intensity
  • Transcript length constrains design flexibility
  • Short transcripts may require specialized strategies

Transcript Accessibility

Secondary structure and bound proteins can affect probe binding.

  • Avoid inaccessible regions when possible
  • Distribute probes across the transcript
  • Balance GC content and melting behavior

Fluorophore Performance

Brightness and photostability influence spot detection quality.

  • Choose dyes matched to the microscope
  • Reduce background in dense or autofluorescent samples
  • Consider spectral separation for multiplex panels

Advanced smFISH Design Considerations

  • Tiling Strategy: Probe spacing and transcript coverage influence cumulative signal.
  • Spot Detection Robustness: Design should support reproducible spot calling above background.
  • Multiplex Expansion: Spectral crowding grows quickly as dye count increases.
  • Sample Context: Tissue autofluorescence and optical depth affect dye choice and panel design.

FAQ

What are smFISH probes?

smFISH probes are fluorescent oligonucleotide sets used to detect individual RNA molecules with high specificity and single-molecule sensitivity.

What are smFISH probes used for?

They are used for single-molecule transcript counting, RNA localization, and spatial gene expression analysis.

How many probes are typically used?

smFISH often uses multiple probes per transcript target, commonly dozens, to generate detectable single-molecule signal.

Can smFISH be multiplexed?

Yes. Multiplexing can be achieved through multiple fluorophores, spectral separation, or more advanced sequential or barcoded strategies.

Can smFISH validate sequencing data?

Yes. smFISH is commonly used to validate transcript abundance and localization suggested by sequencing experiments.

What information helps with quoting?
Please share the target transcript, species, expected transcript length, preferred fluorophore, and whether you need a classic smFISH set or a more multiplex-ready design.

Contact & Quote Request

For the fastest quote, share the target transcript, species, imaging format, preferred dye or channel plan, and whether you need a standard smFISH probe set or a more multiplex-ready architecture.

Fast quote checklist

  • Target transcript and species
  • Expected transcript size and imaging goal
  • Preferred fluorophore or channel strategy
  • Probe count, quantity, and purification target

Fastest path

Recommended Reading

  1. Raj A et al. Imaging individual mRNA molecules using multiple singly labeled probes.
  2. Representative literature on single-molecule RNA FISH, transcript localization, and quantitative RNA imaging.
  3. Related literature covering multiplexed RNA imaging and probe-set design strategies.
