Oligopaint Probes

Sequence-defined oligo libraries for DNA/RNA imaging, chromosome painting, and multiplexed FISH workflows

Oligopaint probes are sequence-defined oligonucleotide libraries for precise DNA and RNA hybridization, enabling chromosome painting, locus imaging, and advanced FISH workflows.

DNA FISH probes RNA FISH probes chromosome painting genomic locus imaging multiplex-ready architectures
Request a quote View Oligopaint Architecture
Talk to a chemist Request a quote
Overview Architecture Fluorescent labeling Key features Oligopaint vs MERFISH Design considerations Related services Contact

What Are Oligopaint Probes?

Oligopaint probes are synthetic, sequence-defined oligonucleotide libraries designed for highly specific fluorescence in situ hybridization (FISH) applications. Unlike traditional long-probe or clone-based systems, Oligopaint designs use short, computationally selected oligonucleotides that hybridize to defined genomic DNA or RNA targets with modular sequence architecture and scalable synthesis.

At the most basic level, an Oligopaint probe contains a target-binding region that hybridizes to the sequence of interest, and it may also include readout, primer, adapter, amplification, or barcode segments depending on the imaging workflow. This modularity makes Oligopaint libraries highly useful for chromosome painting, genomic locus imaging, RNA visualization, super-resolution microscopy, and multiplexed sequential imaging strategies.

Because the probes are sequence-defined and synthetically produced, Oligopaint platforms provide strong control over probe density, target specificity, readout structure, and labeling flexibility. This makes them especially attractive when traditional probe sources are too coarse, insufficiently modular, or difficult to scale for high-content imaging experiments.

Oligopaint probes are best understood as a probe design platform: a modular oligonucleotide architecture that can be adapted for DNA FISH, RNA FISH, chromosome painting, barcoded imaging, and more complex hybridization workflows.

Oligopaint Probe Design for DNA FISH, RNA FISH, and Chromosome Imaging

Oligopaint probe libraries can be tailored for DNA FISH, RNA FISH, chromosome painting, and locus-specific imaging by adjusting probe density, target selection, and the modular sequence architecture used for readout or amplification. This flexibility allows the same core synthesis platform to support both straightforward endpoint hybridization assays and more advanced imaging workflows.

Oligopaint probe design also underpins advanced multiplexed imaging platforms such as MERFISH, where barcoded probe architectures enable large-scale spatial transcriptomics and sequential decoding strategies.

Representative Oligopaint Probe Architecture

A typical Oligopaint probe may include a target-binding sequence plus optional primer sites, readout sequences, adapter segments, or barcodes depending on the imaging method.

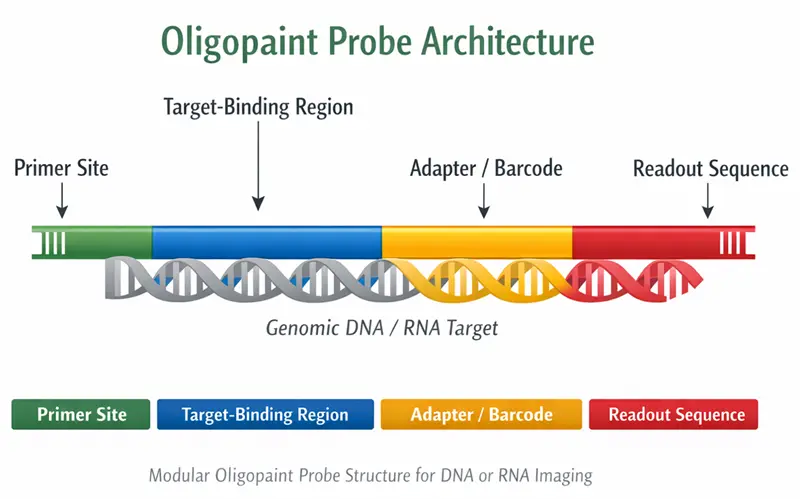

Oligopaint probe architecture showing target binding region, primer sites, readout sequence and barcode for DNA FISH and RNA imaging
Oligopaint probe architecture. A representative design may include sequence-specific hybridization segments together with optional primer sites, readout handles, or barcode regions for amplification or multiplexed imaging.
Probe component Function Why it matters
Target-binding region Hybridizes to the genomic DNA or RNA target Determines specificity and localization accuracy
Primer sites Support amplification, library preparation, or downstream handling Useful for pooled synthesis and probe recovery workflows
Readout sequence Binds fluorescent readout oligos or secondary probes Supports flexible labeling and sequential imaging
Barcode or adapter region Encodes target identity or supports modular architectures Important for multiplexed and advanced imaging designs

Fluorescent Labeling Strategies for Oligopaint Probes

Fluorescent labeling is a critical component of Oligopaint probe design, as it determines signal intensity, multiplexing capability, and compatibility with imaging systems. Oligopaint probes can be labeled either directly with fluorophores or indirectly using readout oligonucleotides, enabling flexible detection strategies across standard FISH and advanced multiplexed imaging workflows.

Direct Fluorophore Labeling

Fluorescent dyes are attached directly to the probe during synthesis.

  • Simple workflow with fewer hybridization steps
  • Suitable for chromosome painting and standard DNA/RNA FISH
  • Limited multiplexing due to spectral overlap
  • Common dyes: Cy3, Cy5, Alexa Fluor series, ATTO dyes

Readout-Based (Indirect) Labeling

Fluorescent readout oligos bind to probe-encoded sequences.

  • Enables flexible dye swapping without redesigning probes
  • Supports multiplexed and sequential imaging (MERFISH, seqFISH)
  • Reduces synthesis cost for large probe libraries
  • Compatible with barcode and amplification strategies
Labeling strategy Advantages Limitations Typical use cases
Direct labeling Simple, fast workflow; strong signal per probe Limited multiplexing; higher synthesis cost for large libraries Chromosome painting, standard DNA FISH, RNA FISH
Readout-based labeling Highly scalable; flexible dye usage; multiplex-ready Requires additional hybridization steps MERFISH, seqFISH, barcoded imaging, spatial transcriptomics

Key Considerations for Fluorescent Dye Selection

  • Spectral separation: Minimize overlap for multiplex imaging panels
  • Photostability: Critical for long imaging sessions and super-resolution microscopy
  • Brightness and quantum yield: Impacts signal-to-noise ratio
  • Compatibility with imaging system: Match excitation lasers and filter sets
  • Number of labeling sites: Affects total signal intensity per target

Design insight: For large Oligopaint libraries and multiplexed imaging workflows, indirect readout-based labeling is typically preferred. Direct fluorophore labeling is most effective for simpler FISH experiments where workflow simplicity and strong signal are prioritized over multiplexing capacity.

Common Fluorophores for Oligopaint Probe Labeling

Dye Excitation / Emission (nm) Key Advantages Typical Use
Cy3 ~550 / 570 Bright, widely available, good balance of performance Standard FISH, 2–3 color imaging
Cy5 ~650 / 670 High sensitivity, low background in red channel Multiplex imaging, deep tissue imaging
Alexa Fluor 488 ~495 / 519 High brightness, good photostability Green channel imaging, multi-color panels
Alexa Fluor 647 ~650 / 668 Excellent photostability, ideal for super-resolution STORM, high-resolution imaging, MERFISH readouts
ATTO 565 ~565 / 590 High photostability, strong signal Super-resolution and advanced imaging
ATTO 647N ~645 / 669 Exceptional brightness and stability High-end microscopy, multiplexed imaging

Dye selection should be matched to microscope laser lines, filter sets, and multiplexing requirements. Longer wavelength dyes such as Cy5 and Alexa 647 typically provide lower background and stronger performance in complex biological samples.

Example Spectral Panel Design for Multiplexed Imaging

Designing a fluorescence panel requires balancing spectral separation, signal intensity, and instrument compatibility. Below are representative 3-color and 5-color panel configurations commonly used in Oligopaint FISH and multiplexed imaging workflows.

Panel Type Fluorophores Laser Compatibility Notes
3-Color Panel Alexa 488 / Cy3 / Cy5 488 nm / 561 nm / 640 nm Robust, low spectral overlap; ideal for standard FISH imaging
3-Color (High Stability) Alexa 488 / ATTO 565 / ATTO 647N 488 nm / 561 nm / 640 nm Improved photostability for longer imaging sessions
5-Color Panel Alexa 488 / Cy3 / Cy5 / Alexa 594 / Alexa 647 488 / 561 / 594 / 640 nm Expanded multiplexing; requires careful filter selection
5-Color (Advanced Imaging) Alexa 488 / ATTO 550 / ATTO 565 / ATTO 647N / Alexa 700 488 / 561 / 640 / 700 nm Optimized for high-end microscopy and super-resolution systems

Key Panel Design Considerations

  • Spectral separation: Minimize emission overlap to reduce bleed-through
  • Laser availability: Match dyes to available excitation sources
  • Detector sensitivity: Consider camera or PMT response across wavelengths
  • Photobleaching resistance: Critical for time-lapse and super-resolution imaging
  • Signal balancing: Adjust probe density or dye choice to normalize intensity across channels
Design insight: For multiplexed Oligopaint and MERFISH-style workflows, spectral panel design is often combined with sequential imaging or barcode decoding. This reduces dependence on simultaneous color separation and allows scaling beyond traditional spectral limits.

Key Features of Oligopaint Probe Libraries

Sequence-Defined Specificity

Designed from computationally selected oligonucleotides for precise genomic or transcript targeting.

Scalable Synthesis

Suitable for pooled or array-derived oligo libraries across small or large target sets.

Modular Readout Design

Can incorporate adapters, primers, and readout regions for flexible detection schemes.

Multiplex Compatibility

Can support sequential imaging, barcoded detection, and higher-order probe architectures.

Applications of Oligopaint Probes

Chromosome Painting

Dense oligo libraries can label entire chromosomes or large chromosomal domains for visualization and structural analysis.

Genomic Locus Imaging

Targeted panels can visualize defined genomic regions, subdomains, or structural features with high specificity.

RNA Imaging

Oligopaint-style probe design can be adapted for transcript detection in RNA FISH workflows and related imaging methods.

Super-Resolution and Multiplexed FISH

Readout-enabled architectures support advanced imaging systems that require modular labeling or iterative imaging.

Typical Oligopaint Design Workflow

A representative workflow moves from genomic target selection to probe design, synthesis, fluorescent labeling, and imaging analysis.

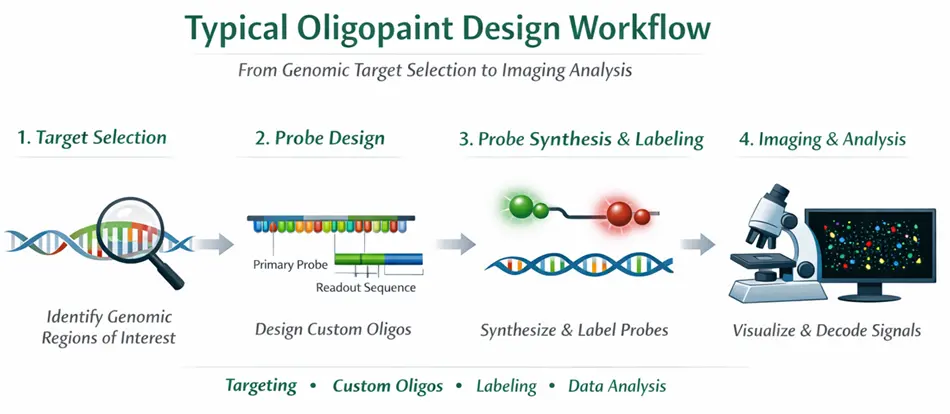

Typical Oligopaint design workflow showing target selection, probe design, probe synthesis and labeling, and imaging analysis
Typical Oligopaint design workflow. Representative progression from target selection and custom oligo design to probe synthesis, fluorescent labeling, and imaging analysis.
Practical note: A strong Oligopaint design depends not only on target specificity, but also on probe density, library complexity, readout strategy, desired imaging resolution, and how the probes will be labeled or decoded in the final assay.

How Oligopaint Probes Relate to MERFISH

Oligopaint probes and MERFISH probes are closely related, but they are not the same thing. Oligopaint refers to a probe design platform based on modular, sequence-defined oligonucleotide libraries. MERFISH, by contrast, is a specific multiplexed imaging methodology that uses combinatorial barcoding, error-robust encoding, and sequential imaging cycles.

In practice, MERFISH probe systems are often built using Oligopaint-style design principles. Each target can be assigned a barcode encoded through multiple readout regions, then decoded across repeated rounds of imaging. That means Oligopaint chemistry often provides the foundational probe architecture, while MERFISH defines the higher-level imaging system and decoding strategy.

Feature Oligopaint probes MERFISH probes
Primary role Probe design platform Multiplexed imaging methodology
Encoding requirement Optional Required
Readout complexity Low to high, depending on design High, barcode-driven
Typical use DNA FISH, RNA FISH, locus imaging, chromosome painting Spatial transcriptomics and large-scale multiplexed RNA imaging
Oligopaint probes are the building blocks; MERFISH is one advanced barcoded imaging system that can be built on Oligopaint-style oligonucleotide design.

Design Considerations for Oligopaint Probes

Probe Density

The number of oligos per target region affects signal intensity, coverage, and imaging performance.

  • Higher density can improve signal
  • Coverage should match target size
  • Balance complexity with practical workflow needs

Specificity and Filtering

Sequence selection should minimize off-target hybridization and repetitive sequence problems.

  • Exclude problematic repeats when appropriate
  • Consider GC balance and melting behavior
  • Match stringency to intended assay conditions

Readout Strategy

Direct labeling, secondary readouts, or barcoded systems each change probe architecture and workflow complexity.

  • Simple FISH can use straightforward labeling
  • Multiplexed systems benefit from modular readouts
  • Barcoded imaging needs careful architecture planning

Advanced Architecture Considerations

High-quality Oligopaint probe design often requires balancing target-binding efficiency with library complexity, synthesis constraints, and downstream imaging method.

  • Hybridization Performance: Probe length, target composition, and melting behavior influence binding quality.
  • Modular Sequence Design: Primer sites, readout handles, and barcodes should not compromise target specificity.
  • Multiplex Expansion: Future compatibility with sequential imaging or barcode decoding should be considered early.
  • Imaging Method Alignment: Probe architecture should match whether the final workflow is standard FISH, super-resolution imaging, or barcoded multiplexing.

Optional Functional Modifications and MERFISH-Ready Design

Standard Oligopaint probe designs do not inherently require cleavable linkers such as disulfide bonds. Most chromosome-painting, DNA FISH, and RNA FISH applications use stable hybridization probes without release chemistry. However, additional functional handles can be incorporated when the design needs iterative imaging, probe resetting, or more complex modular labeling.

  • Disulfide linkers: Optional for reductive cleavage, probe removal, or signal reset in iterative workflows. These are not a default requirement for standard Oligopaint probes.
  • Photocleavable linkers: Useful when light-triggered release or controlled probe removal is desired.
  • Click-ready handles: Azide, alkyne, or DBCO groups support modular post-synthetic labeling.
  • Direct fluorophore or readout sequences: Can support either simple endpoint imaging or more advanced sequential decoding strategies.
  • MERFISH-ready architectures: Oligopaint-style probe design can be adapted to include barcode-compatible readout regions for multiplexed spatial imaging workflows.
Standard Oligopaint probes are typically built for stable hybridization and do not require disulfide linkage. Disulfide and other cleavable features become relevant only when designing more advanced multiplexed or iterative imaging systems, including MERFISH-like readout strategies.

FAQ

What are Oligopaint probes used for?

They are commonly used for chromosome painting, locus-specific DNA imaging, RNA visualization, and multiplexed fluorescence imaging strategies.

What is the difference between Oligopaint and traditional FISH probes?

Oligopaint probes are built from sequence-defined synthetic oligonucleotide libraries, which provide greater modularity, scalability, and architectural control than many traditional long-probe or clone-based FISH systems.

Are Oligopaint probes suitable for super-resolution microscopy?

Yes. Oligopaint libraries are widely used in super-resolution and high-content imaging because their modular design supports dense tiling, flexible labeling, and multiplex-ready readout architectures.

Can Oligopaint probes support multiplexed imaging?

Yes. Readout and barcode regions can be incorporated into the architecture to support more advanced multiplexed workflows.

What are Oligopaint probes?

Oligopaint probes are synthetic, sequence-defined oligonucleotide libraries used for DNA FISH, RNA FISH, chromosome painting, and related imaging workflows.

Can Oligopaint probes be used for RNA targets?

Yes. Oligopaint-style probe design principles can be applied to RNA imaging workflows as well as genomic DNA applications.

Are Oligopaint probes the same as MERFISH probes?

No. Oligopaint is a probe design platform, while MERFISH is a specific barcoded multiplex imaging methodology that may use Oligopaint-style architectures.

What information helps with quoting?

Please share the target organism, genomic region or transcript list, intended imaging method, desired readout architecture, and the scale of the probe library.

More FAQ'sAll FAQ's

Contact & Quote Request

For the fastest quote, share the target species, chromosome or locus information, transcript targets if applicable, desired imaging format, probe architecture requirements, and library scale.

Fast quote checklist

  • Species and target region or transcript set
  • DNA FISH, RNA FISH, or multiplex imaging format
  • Readout or barcode requirements
  • Quantity, purification, and library size

Fastest path

Request a Quote Speak to a Chemist

Recommended Reading

  1. Beliveau BJ et al. OligoMiner provides a rapid, flexible environment for the design of genome-scale oligonucleotide in situ hybridization probes.
  2. Beliveau BJ et al. Single-molecule super-resolution imaging of chromosomes and in situ haplotype visualization using Oligopaint FISH probes.
  3. Representative literature on Oligopaint design, chromosome painting, and multiplexed oligonucleotide imaging workflows.
